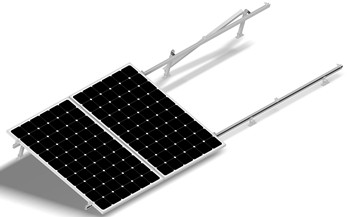

Adjusted Tilt Roof Mount SN-FRT Series

Adjusted Tilt Roof Mount

Snergytec's Adjusted Tilt Roof Mount SN-FRT Series will easily fit different flat roof or open land applications, due to its variable tilt angle and footing options for both roof clamp and roof penetration. Elevation can be used as fixed tile or adjusted tilt, allow project- specific adjustments and optimize solar power output. The innovative and high pre-assembly eliminate the need for on-site cutting, welding and enables quick and easy PV module installation.

Technical Date

• Location: Flat Roof, Open Land

• Max wind speed: 60m/s

• Snow load: 1.6 kN/m2

• Tilt Angle: 10-15°,15-30°, 30-60°

• PV modules: Framed, unframed

• Module orientation: upright, landscape

• Standards: Eurocode 1, AS/Z1170.2,JIS 8955,UL2703

• Material: A6005T5

• Warranty: 15 years

• Duration: more than 20 years

Send Mail Inquiry

• System Compatibility

Components mostly pre-assembled in factory to assure quick and reliable installation on site. Suitable for different flat rooftop, and compatible to different types of solar modules.

• Unique Mudsill Design

The mudsill can be fixed to flat roof or pitched roof with concrete foundation or steel foundation

• Solar Module Layout Flexibility

Both landscape and portrait solar module layout are suitable. Both single row and double rows layout can be achieved, separately or combined

• Adjustability

Tilt angle can be adjustable
