Standing Seam Roof Mount SN-SR Series

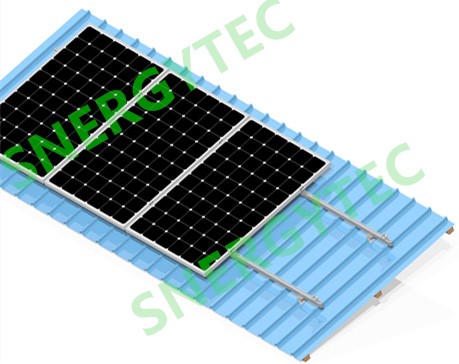

Standing Seam Roof Mounting System SN-SR Series

Snergytec' standing seam roof clamps makes mounting on folded seam roof particularly easy. the clamps are simply attached to the standing seams. the clamps offer a secure fastening without penetrating the roof sheet, ensuring maximum stability with minimum weight. the variety of system combinations like l feet, fixed or pv module clamp directly, allows it to be connected quickly to all rail components.

Technical Date

• Location: pitched roof

• Max wind speed: 60m/s

• Snow load: 1.6 kN/m2

• Building height: Up to 20 m

• PV modules: Framed, unframed

• Module orientation: upright, landscape

• Standards: Eurocode 1, AS/Z1170.2,JIS 8955,UL2703

• Rail profiles: extruded aluminium

• Roof hook: stainless steel

• Color: mill / natural / black

• Warranty: 15 years

• Duration: more than 20 years

Seam Clamp

SN-SC-01

SN-SC-02

SN-SC-03

SN-SC-04

SN-SC-05

SN-SC-06

SN-SC-08

SN-SC-09

SN-SC-10

SN-SC-11

SN-SC-12

SN-SC-13

• Non-penetrating design ensures watertightness
• Maximum stability with minimum weight
• Variable combinations with l feet, fixed foot or pv module clamp directly
• Simple and quick installation achieved by attaching the clamp to the standing seams
• Pre -assembled, Cost-effective
• Clamps fix on raised seam only no damage surface of sheet
• Strong material code Aluminum 6005-T5, SUS304/316 fasteners.
