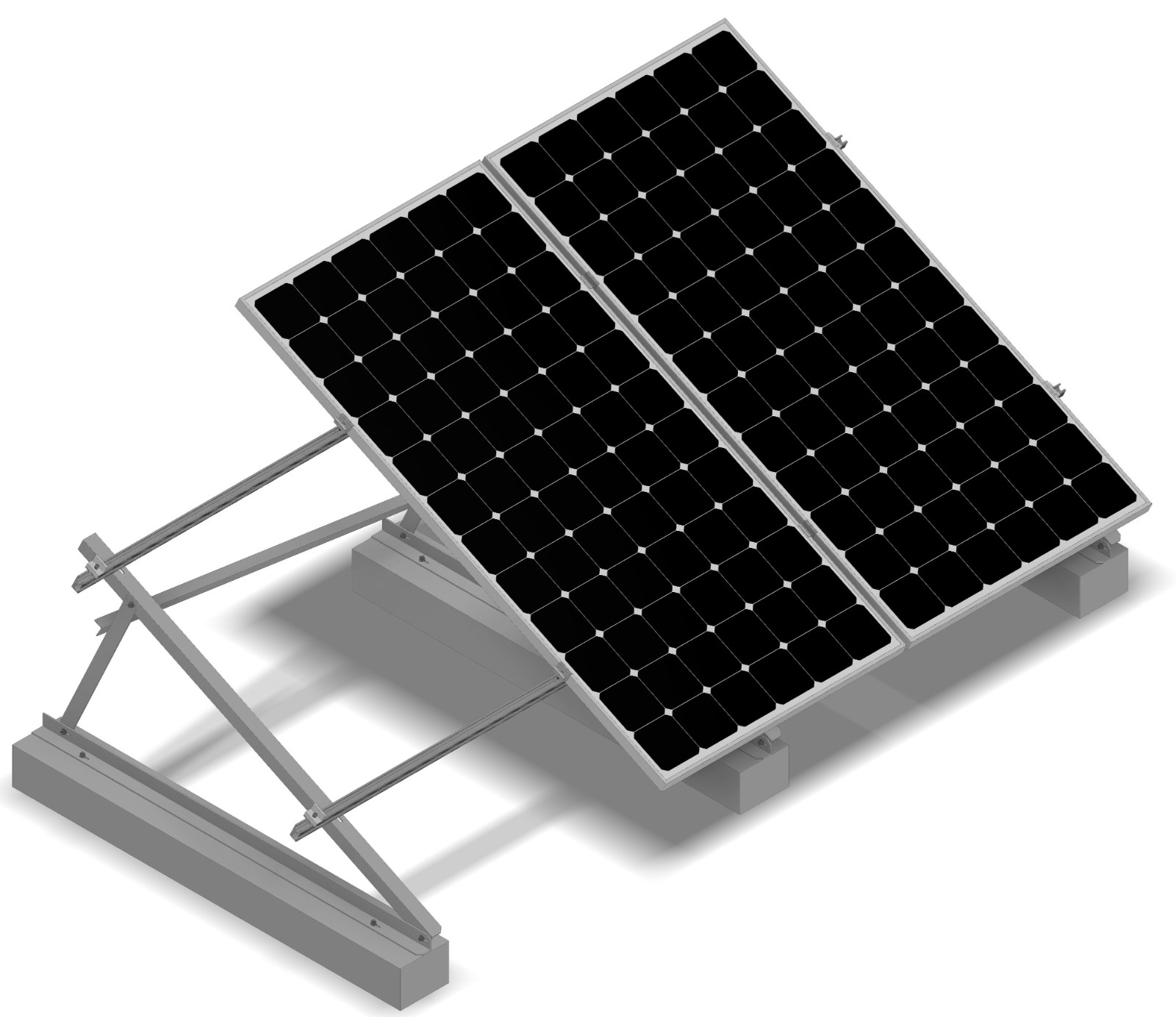

Flat Roof Mount SN-FRA Series

Aluminium Flat Roof Mount

Snergytec’s SN-FRA series flat roof mounting system with footing options for both ballasted solution and roof penertration. The innovative design and high pre-assembly eliminate the need for on-site cutting, welding and enables quick and easy field PV module installation.

Technical Date

• Location: Flat Roof, Open Land

• Max wind speed: 60m/s

• Snow load: 1.6 kN/m2

• Tilt Angle: 10-15°,15-30°, 30-60°

• PV modules: Framed, unframed

• Module orientation: upright, landscape

• Standards: Eurocode 1, AS/Z1170.2,JIS 8955,UL2703

• Material: A6005T5

• Warranty: 15 years

• Duration: more than 20 years

Send Mail Inquiry

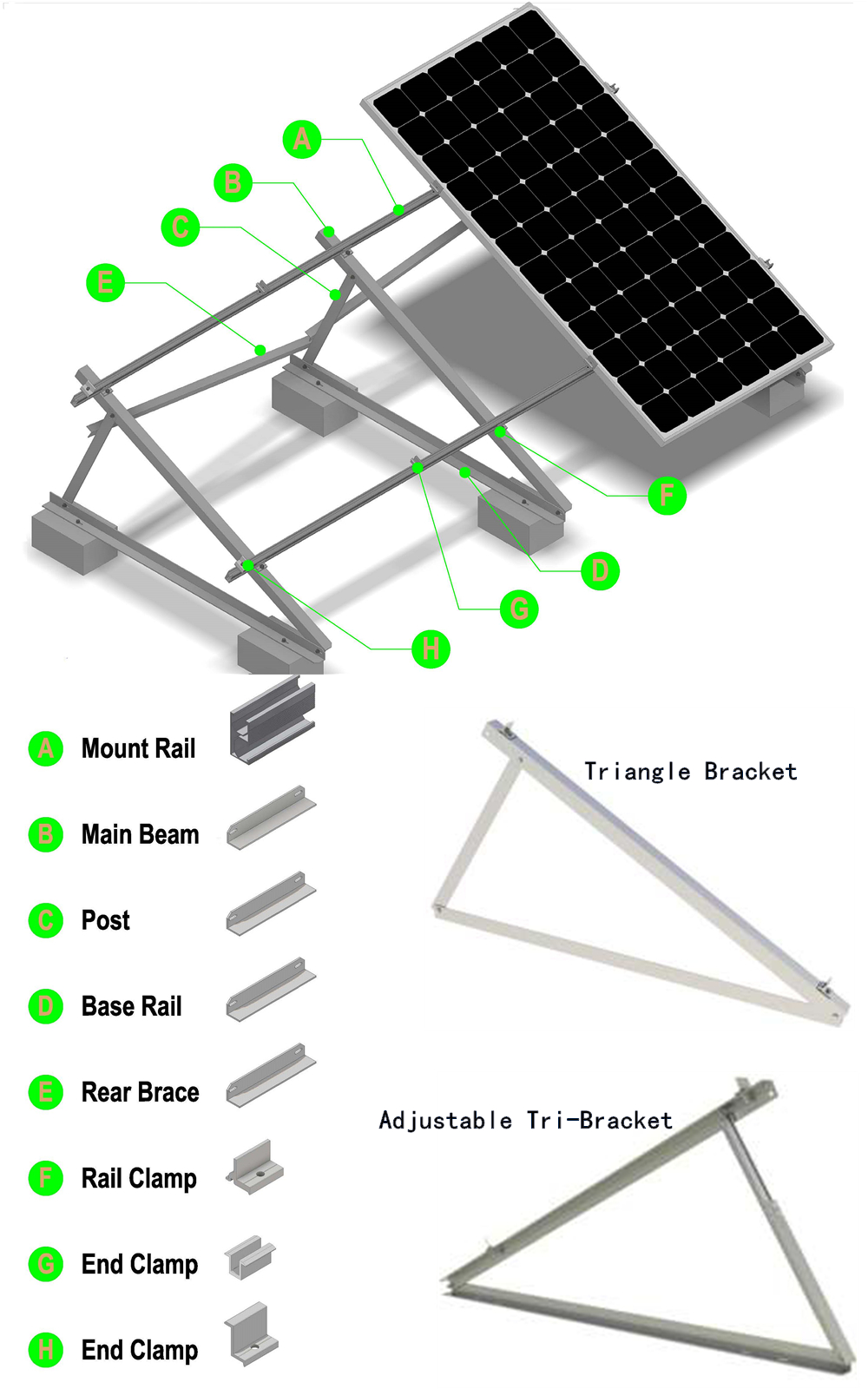

• System Compatibility

Components mostly pre-assembled in factory to assure quick and reliable installation on site. Suitable for different flat rooftop, and compatible to different types of solar modules.

• Unique Mudsill Design

The mudsill can be fixed to flat roof or pitched roof with concrete foundation or steel foundation

• Solar Module Layout Flexibility

Both landscape and portrait solar module layout are suitable. Both single row and double rows layout can be achieved, separately or combined

• Adjustability

Tilt angle can be adjustable
